iFrogLab 2.4G Spectrum Analyzer USB dongle





2.4GHz band portable spectrum analyzer,
just the size of a U disk hardware box
but can be connected to a PC display,
covering the common 2.4GHz band,
detection bandwidth up to 80MHz;

Product Features:

80MHz bandwidth covering ISM band (2.4GHz ~ 2.48GHz),
RF interface SMA interface, maximum input power of 0dBm,
CENTER, SPAN can be adjusted independently
Support slide Marker, amplitude-frequency maximum, minimum display
Spectrum grid blanking support, dynamic amplitude.
Spectrum screen pause / resume;
Support (single and continuous) triggering
Application areas:
Basic RF 2.4G band for debugging and testing (PA-power, nonlinear test);
Conformance testing wireless products;
Environmental wireless signal interference distribution;
Performance testing of the wireless signal coverage
Wireless product development aided testing;


click here to download

Available now:

iFrogLab 2.4G Spectrum Analyzer USB dongle available online store here

you will get:

1) 1 pcs 2.4GHz band portable spectrum analyzer

2) 1 pcs 2.4GHz antenna

3) 1 pcs USB extension cable

Packaging Details

  • Unit Type: piece
  • Package Weight:0.200kg (0.44lb.)
  • Package Size:12cm x 8cm x 5cm (4.72in x 3.15in x 1.97in)

Product Videos:

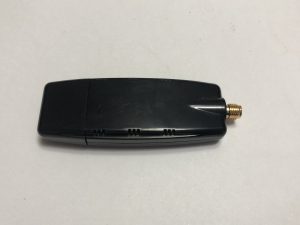

Product images:
