iFrogLab LoRa Module

$27.90

Category:

Description

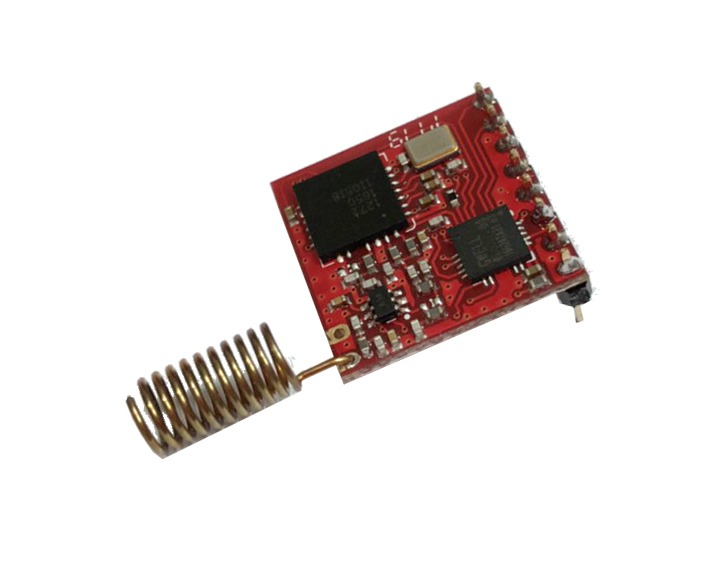

iFrogLab  Lora 868/900/915 MHz SX1272 module compatible

Features:

  • Frequency Range: 868/900/915MHz
  • Modulation: FSK/GFSK/MSK/LoRa
  • SPI Data Interface Sensitivity: -137dBm
  • Output Power: +20dBm Data Rate: <300 kbps 127dB dynamic Range RSSI Excellent blocking immunity Preamble detection Automatic RF sense and CAD monitor Built-in bit synchronizer for clock recovery Packet engine up to 256 bytes with CRC
  • Working Temperature: -40°C ~+80°C Build-in temperature sensor
  • Standby current: ≤ 1uA
  • Supply voltage: 1.8~3.6V

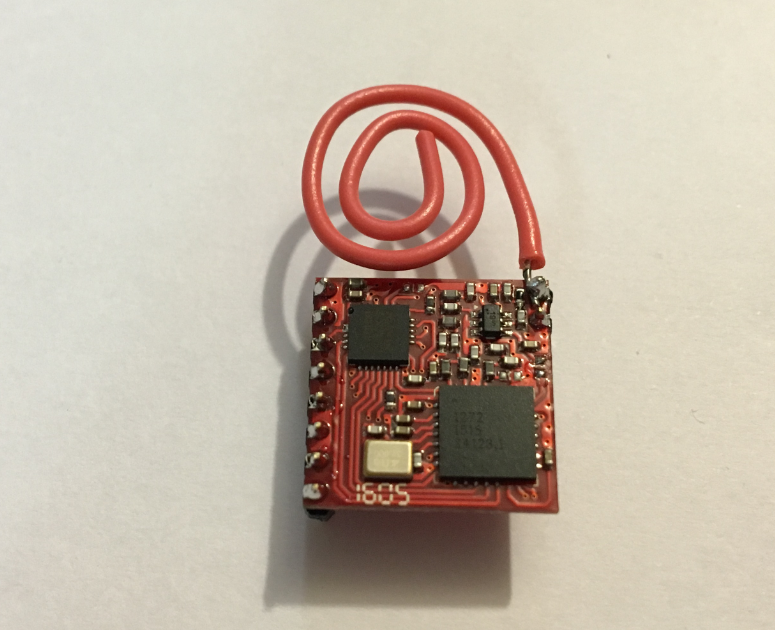

iL-LORA1272 is a type of low cost RF front-end transceiver module based on SX1272 from Semtech Corporation. It keeps the advantages of RFIC SX1272 but simplifies the circuit design. The high sensitivity (-137dBm) in LoRa modulation and 20dBm high power output make the module suitable for low range and low data rate applications.

iL-LORA1272 module consists of RFIC SX1272 and include powerful MCU, thin SMD crystal and antenna matching circuit. The antenna port is well matched to standard 50 Ohm impedance. Users don’t need to spend time in RF circuit design and choose suitable antennas for different applications. iL-LORA1272 operates at 1.8~3.6V with extra low standby current which makes it suitable for battery powered-up applications. Because iL-LORA1272 is purely hardware module and it adopts ±10ppm crystal which the resolution of it places a important role in calculating spreading factor, bandwidth, etc.

In addition, We’er add powerful MCU to help Users that don’t needs to read the datasheet of SX1272, you just go through UART to control this module and will easy to use the module in the best performance.



 Document

PPT download here

UART data spec PDF here

Source Code

github download

Demo and tutorial:

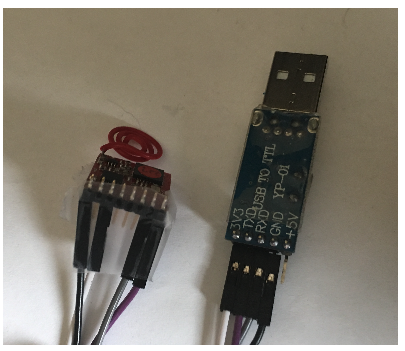

LoRa on PC

LoRa on Arduino

Document

PPT download here

Specs PDFDownload here

iFrogLab   IL-LORA1272

Headr Code : SX1272
0xC1
SX1276
0xC2
115200 8,n,1
BYTE-1 BYTE-2 BYTE-3 BYTE-4 BYTE-5 BYTE-6 BYTE-7 BYTE-8 BYTE-9 BYTE-10 BYTE-11 BYTE-12 … … BYTE-19 BYTE-20
Headr Code Command len Data-1 Data-2 Data-3 Data-4 Data-5 Data-6 Data-7 Data-8 Data-9 … … Data-16 Data-17
Read firmware version and Chip ID
PC -> MCU 0x80 0x00 0x00 CRC (option) SW Version。
PC <- MCU 0x80 0x80 0x02 Chip Version CRC C1:Sx1272。
Restart & initial
PC -> MCU 0xC1
0xC2
0x01 0x00 CRC (option) Reset (Lora Mode Default)。
PC <- MCU 0xC1
0xC2
0xAA 0x01 0x55 CRC MCU get data, return ACK。
Get current LoRa setting
PC -> MCU 0xC1
0xC2
0x02 0x00 CRC (option) RF Chip setup vaule。
PC <- MCU 0xC1
0xC2
0x82 0x08 Mode FreqH FreqM FreqL Power BW CR SF CRC Mod2 : Sleep(0x00)、StandBy(0x01)、Tx(0x02)、Rx(0x03)。
Freq : FreqH&M&L * 61.035156。
Power : 2(0x00) ~ 17(0x0F)dBm。
BW:125k(0x01)、250k(0x2)、500k(0x3)。
CR:4/5(0x1)、4/6(0x2)、4/7(0x3)、4/8(0x4)。
SF:6(0x1)、7(0x2)、8(0x3)、9(0x4)、10(0x5)、11(0x6)、12(0x7)。
set send/receive mode and frequence
PC -> MCU 0xC1
0xC2
0x03 0x05 Mode FreqH FreqM FreqL Power CRC (option) Mod2 : Sleep(0x00)、StandBy(0x01)、Tx(0x02)、Rx(0x03)。
Freq : 860.00 ~ 1020.00MHz ; Default 915.00MHz(Sx1272)。
Power : 2(0x00) ~ 17(0x0F)dBm ; Default 2dBm。
PC <- MCU 0xC1
0xC2
0xAA 0x01 0x55 CRC MCU get data, return ACK。
Setup Lora 設定Lora參數
PC -> MCU 0xC1
0xC2
0x04 0x03 BW CR SF CRC (option) BW:125k(0x01)、250k(0x2)、500k(0x3) ; Default 500K
CR:4/5(0x1)、4/6(0x2)、4/7(0x3)、4/8(0x4) ; Default 4/5
SF:6(0x1)、7(0x2)、8(0x3)、9(0x4)、10(0x5)、11(0x6)、12(0x7) ; Default 9
PC <- MCU 0xC1
0xC2
0xAA 0x01 0x55 CRC MCU收到資料回ACK。
Send Data
PC -> MCU 0xC1
0xC2
0x05 0x01 ~ 0x10 Data0 Data1 Data2 Data3 Data4 Data5 Data6 Data7 Data8 … … Data15 CRC (option) Write data。
PC <- MCU 0xC1
0xC2
0xAA 0x01 0x55 CRC MCU收到資料回ACK。
receive Data
PC -> MCU 0xC1
0xC2
0x06 0x00 CRC read data
PC <- MCU 0xC1
0xC2
0x86 0x01 ~ 0x10 Data0 Data1 Data2 Data3 Data4 Data5 Data6 Data7 Data8 … … Data15 CRC (option)
Get Rssi
PC -> MCU 0xC1
0xC2
0x07 0x00 CRC (option)
PC <- MCU 0xC1
0xC2
0x87 0x02 RssiH RssiL CRC Signed number。
Other
PC <- MCU 0xC1
0xC2
0xFF 0x02 num Non CRC num:0 ~ 255 Error Message number。
01:Data error , 02:CRC error , 03:Dev error , 04:Mode error , 05:Busy , 06:Data Over
Non:Test Fun
CRC:All Byte XOR。
Ex : Read Version command  (CRC)0x80 = (0x80)XOR(0x00)XOR(0x00) ; setup  0x80 0x00 0x00 0x80
Freq : for example, if user input 915.00MHz, please convert to 915000000Hz, division 61.035156, and convert to 16 Hex
915000000 / 61.035156 = 14991360(Rounded) -> 0xE4 0xC0 0x00

iFrogLab LoRa  AT Command  API :

AT_lora_reset

AT_lora_rx data

AT_lora_tx data

AT_lora_freq (860-1020)

AT_lora_pwr (2-17)

AT_lora_bw (1-3)=>125,250,500K

AT_lora_cr (1-4) (6-9)

AT_lora_sf (1-7)(6-12)

AT_lora_sleep

AT_lora_standby
