Sigfox Monarch Module WSG309S (BT5.0)

Sigfox Monarch Module WSG309S (BT5.0)

Sigfox WSG309S_IPEX and WSG309S

WSG309S RC 1/2/3/4/5/6/7  is a Sigfox +BT5.0 modem
module for the low power wide area network
(LPWAN) market. It is designed with STM’s system
S2-LP+BLUENRG248 MCU
The module was designed for high performance,
high quality, low cost, small form factor and most
importantly. The Sigfox application is running on
BLUENRG2 MCU at high efficiency executed at high
efficiency using its internal 32bit core Cortex-M0
processor.
Every module is preloaded with Sigfox application
software, module specific ID/KEY/PAC as referring to
Sigfox network system. The preloaded software also
includes a bootloader which allows the software update
or future user application development.WSG309S RC 1/2/3/4/5/6/7  is a Sigfox +BT5.0 modem
module for the low power wide area network
(LPWAN) market. It is designed with STM’s system
S2-LP+BLUENRG248 MCU
The module was designed for high performance,
high quality, low cost, small form factor and most
importantly. The Sigfox application is running on
BLUENRG2 MCU at high efficiency executed at high
efficiency using its internal 32bit core Cortex-M0
processor.
Every module is preloaded with Sigfox application
software, module specific ID/KEY/PAC as referring to
Sigfox network system. The preloaded software also
includes a bootloader which allows software update
or future user application development.

Features



◼General Sigfox module for Smart City, Smart Agriculture, Smart Industry, IOT Application

◼ Compact Form Factor: 28.5 x 16.5 x 3.0 mm

◼ 59 Pin Stamp Pad for PCB SMT mounting

◼ Interface : I2C*1/UART*1/GPIO*12/ADC*2/SWD*1

◼ Temperature range: -30°C to +85°C

◼ Supply voltage: 2.1 ~ 3.6V

◼ Preloaded Sigfox application with ID/KEY/PAC



















Module Pinout:





Pin Definition:









Document:

product description download.



Module Dimension:

WSG309S_RF_PAD



WSG309S_RF_PAD

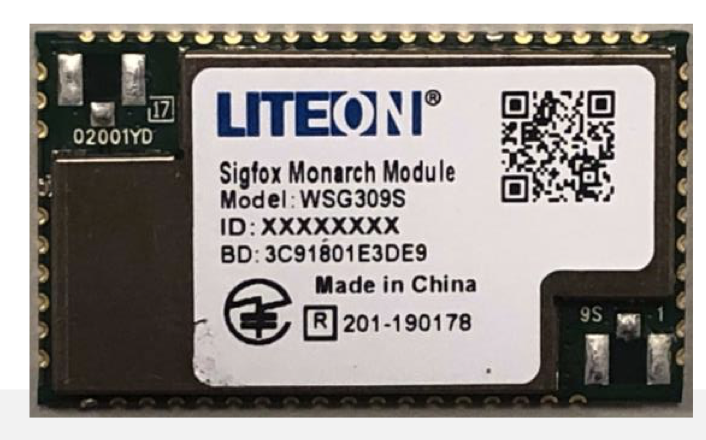

Product Images:
